Engineered for structural integrity, clear panoramic views, and straightforward fitting. Fully compliant with UK Building Regulations (BS 6180:2011).
Select the fixing method that matches your window reveal and external wall construction in the calculator below.

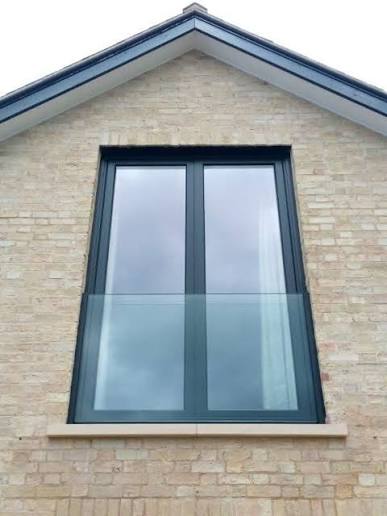

Slim vertical aluminium profiles mounted neatly inside the window reveal. Flush architectural look with zero disruption to the external façade.
Robust cylindrical stainless steel adapters fixed directly to the external wall face with adjustable offsets to clear projecting cills.
Use the interactive calculator to get an instant quote and add to cart.
| Feature / Specification | Side Profile (Reveal Fit) | Standoff Point-Fix (Face Mount) |
|---|---|---|
| Fixing Position | Inside window jamb / reveal | Face of external masonry or timber/steel frame |
| Glass Preparation | Straight polished edges (No holes required) | CNC precision-drilled countersunk holes |
| Supported Glass Thicknesses | 13.52 mm, 17.52 mm, 21.52 mm ESG/VSG | 13.52 mm, 17.52 mm, 21.52 mm ESG/VSG |
| Max Daylight Opening | Up to 3,000 mm | Up to 2,600 mm |
| Sill Clearance | Fits above sill within reveal | Adjustable standoffs clear standard projecting sills |
All Glass Squad Juliet balconies are manufactured using Toughened Laminated Safety Glass (ESG/VSG) with polished edges.
Compact & Cost-Effective: Best suited for smaller domestic French door openings (up to ~1300–1400 mm daylight opening). Lighter weight for simpler handling.
The Industry Benchmark: The standard specification for most residential openings up to 2100 mm. Delivers high structural rigidity and minimal deflection.
Maximum Span & High Wind Zones: Required for extra-wide openings up to 3000 mm or higher building elevations subject to increased wind load requirements.
Measure the clear daylight width between brickwork or reveal walls. We calculate the exact glass tolerances automatically.
Choose 13.52 mm, 17.52 mm, or 21.52 mm glass, followed by your profile or standoff hardware finish in the configurator.
Glass is cut, polished, tempered, and laminated to exact dimensions in our processing plant.
Delivered direct via dedicated fragile glass vehicles complete with all gaskets, screws, and installation diagrams.
13.52 mm is suitable for openings up to 1300–1400 mm wide meeting the 0.74 kN/m domestic barrier load. For wider openings, 17.52 mm or 21.52 mm is mandatory to maintain compliance.
No. The Side Profile system uses vertical clamping with EPDM gaskets. Standoff bolt systems require CNC pre-drilled holes.
Yes. When mounting onto an insulated render (EWI) or clad façade, we supply extended stainless steel threaded rods combined with structural spacer tubes to transfer the load directly into the underlying structural masonry.
In need of a bespoke size or a different specification of glass? Contact us today for a free quote.
